Description

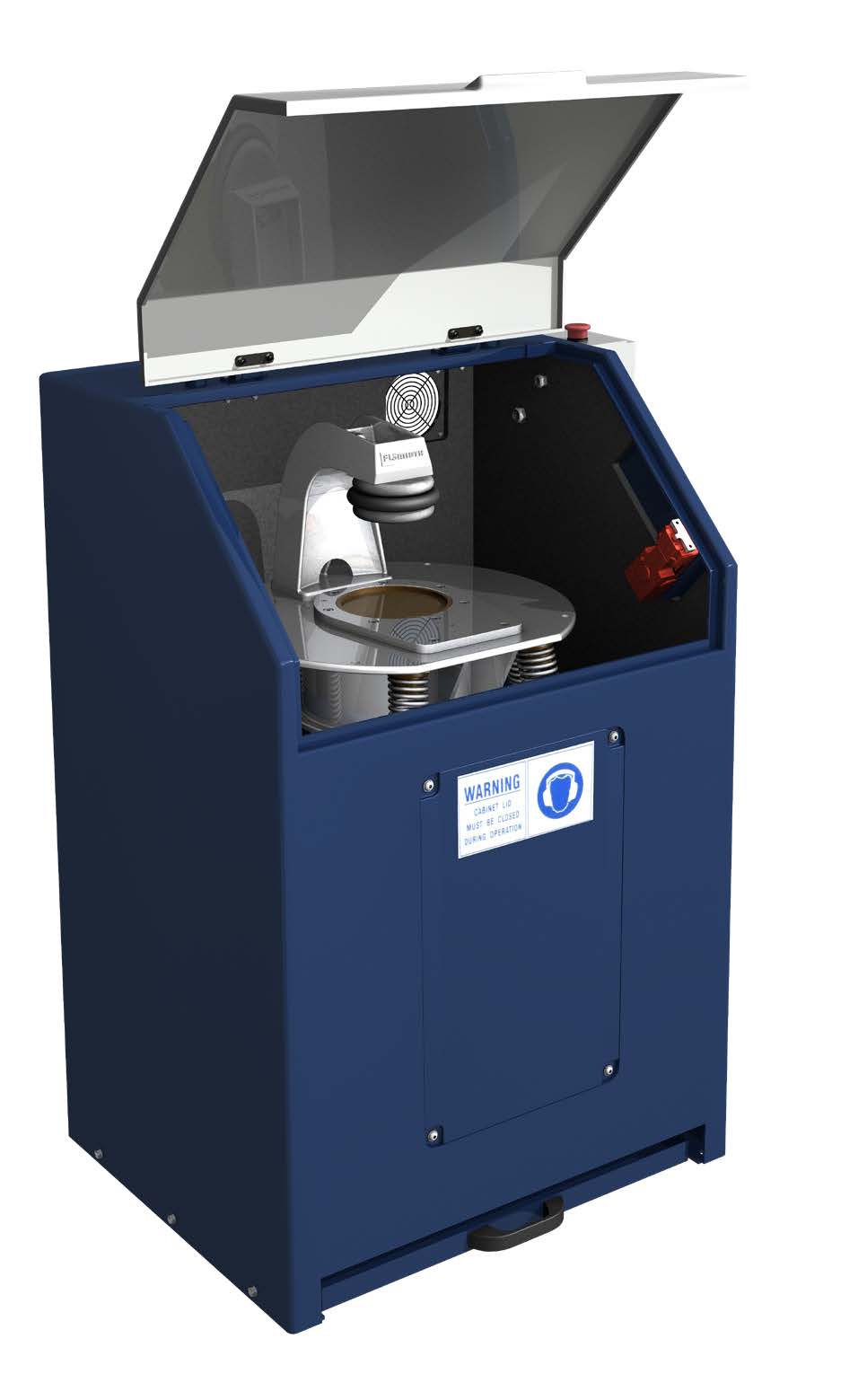

From the iconic Essa. LM series, the LM2 is a bulletproof, reliable
vibratory mill powered to rapidly prepare high volumes of mineral ore
samples for analysis.
Benefits
■ Accepts bowls from 50 cc to 2000 cc for
adaptability to a wide range of grinding
applications and sample sizes whilst reducing
contamination and sample losses.
■ User-friendly pneumatic bowl clamping for
increased efficiency and reduced manual
handling.
■ Easy to clean insulated cabinet with effective
noise suppression measures.

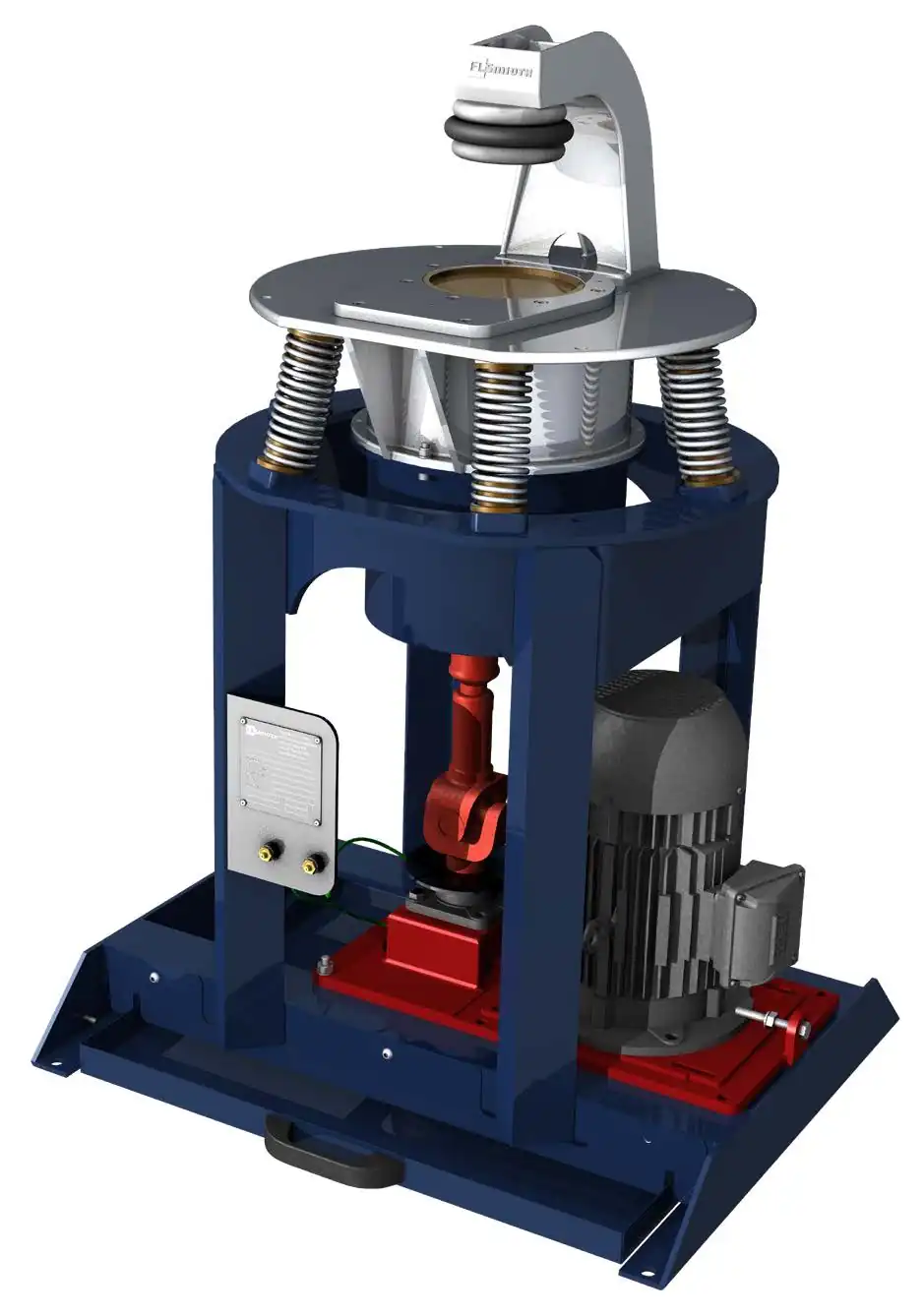

■ Stationary 2.2 kW motor and drive shaft
arrangement provides a reliable drive system
and increased motor life.
■ Compact footprint for easy installation and
efficient use of plant space.
■ Lid safety switch and emergency stop button
for improved safety.
■ Mineral industry recognised standard used by
most major commercial laboratories.
■ Available in many variable voltage options.
■ Detachable front access panel for simplified
maintenance access.
Powerful and flexible operation
With the power of a 2.2 kW driven shaft, this long-term tested
and proven workhorse pulverising system rapidly prepares up
to 1.6 kg of material for analysis, making it well suited to:
Unique safety features
The Essa LM2 has advanced design features for a user-friendly
experience with improved safety.
The ability to be fitted with a unique 800 cc, 1000 cc or 2000 cc
single disc type grinding bowl, in addition to any standard size
of ring and roller grinding bowl, makes it adaptable to a wide
range of applications. Optional bowl materials include chrome
steel, standard steel and tungsten carbide. The LM2 is used for
pulverising ores, minerals, metallurgical samples, ceramics,
soils, aggregates, chemicals and similar particulate. Typically,
samples can be ground to 95% minus 75 micron in
approximately three minutes, depending upon their mass and
physical characteristics.
■ High volume mineral laboratories that regularly
prepare large samples in the unique Essa single-disc
style of bowl.
■ Any laboratory remote from the specialised repair
services that are typically required for integral vibratory
motor-driven mills.
■ An external control box has motor overload, timer and
pneumatic failure protection, preventing the bowl or lid
from flying out in an uncontrolled manner.
■ A lid locking safety switch makes the chamber
inaccessible during operation. It incorporates a time
delay to prevent the operator from accessing the mill
platform until the machine
has completely stopped.
■ The mill will not start until the lid is completely closed.
■ The machine can be stopped quickly with the easily
accessible emergency stop button.
■ The hard-wearing, stainless steel mill platform features
improved accessibility and ergonomics.
■ The optional MillMate pneumatic lifting device allows
for reduced manual handling.
